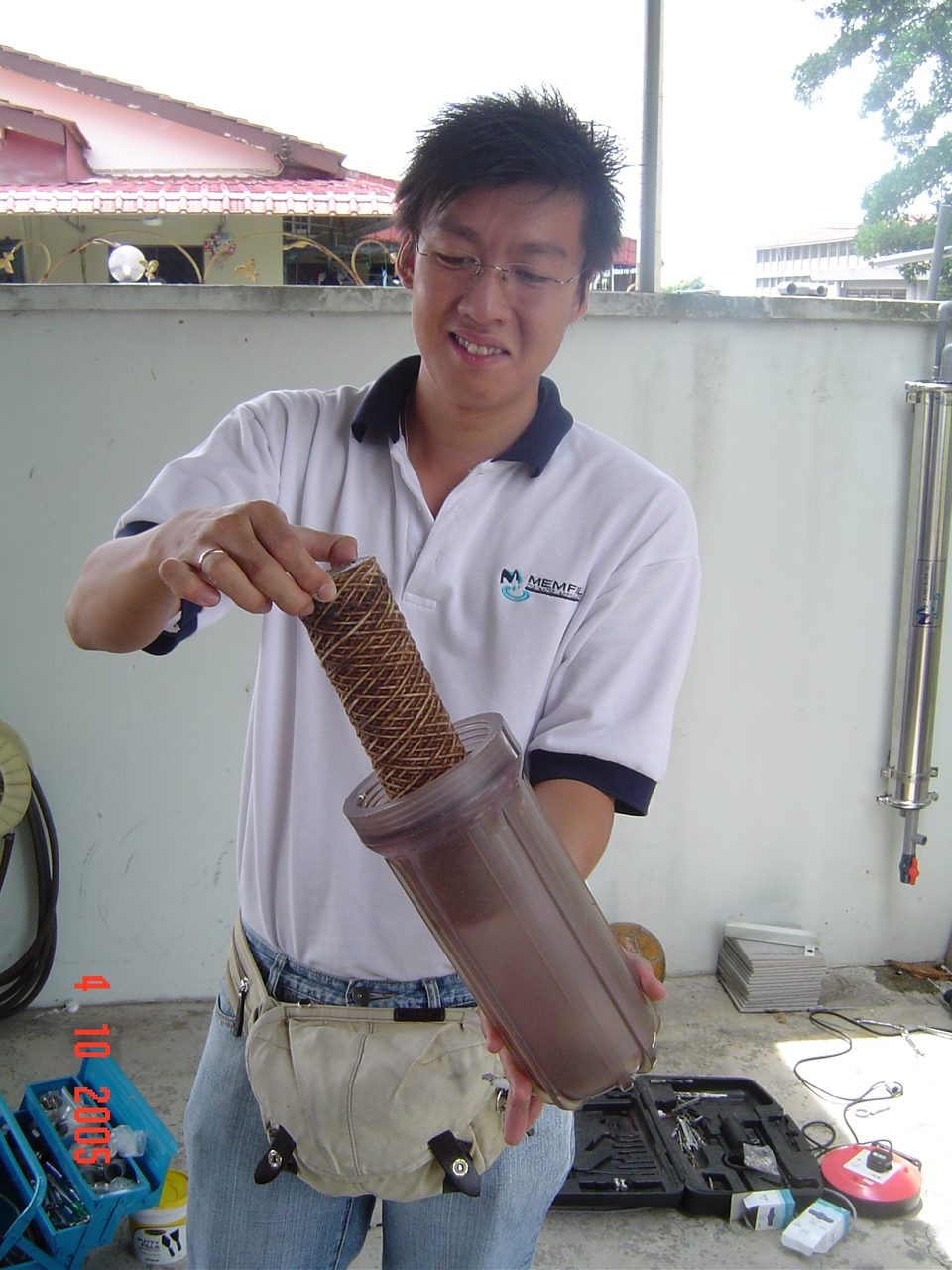

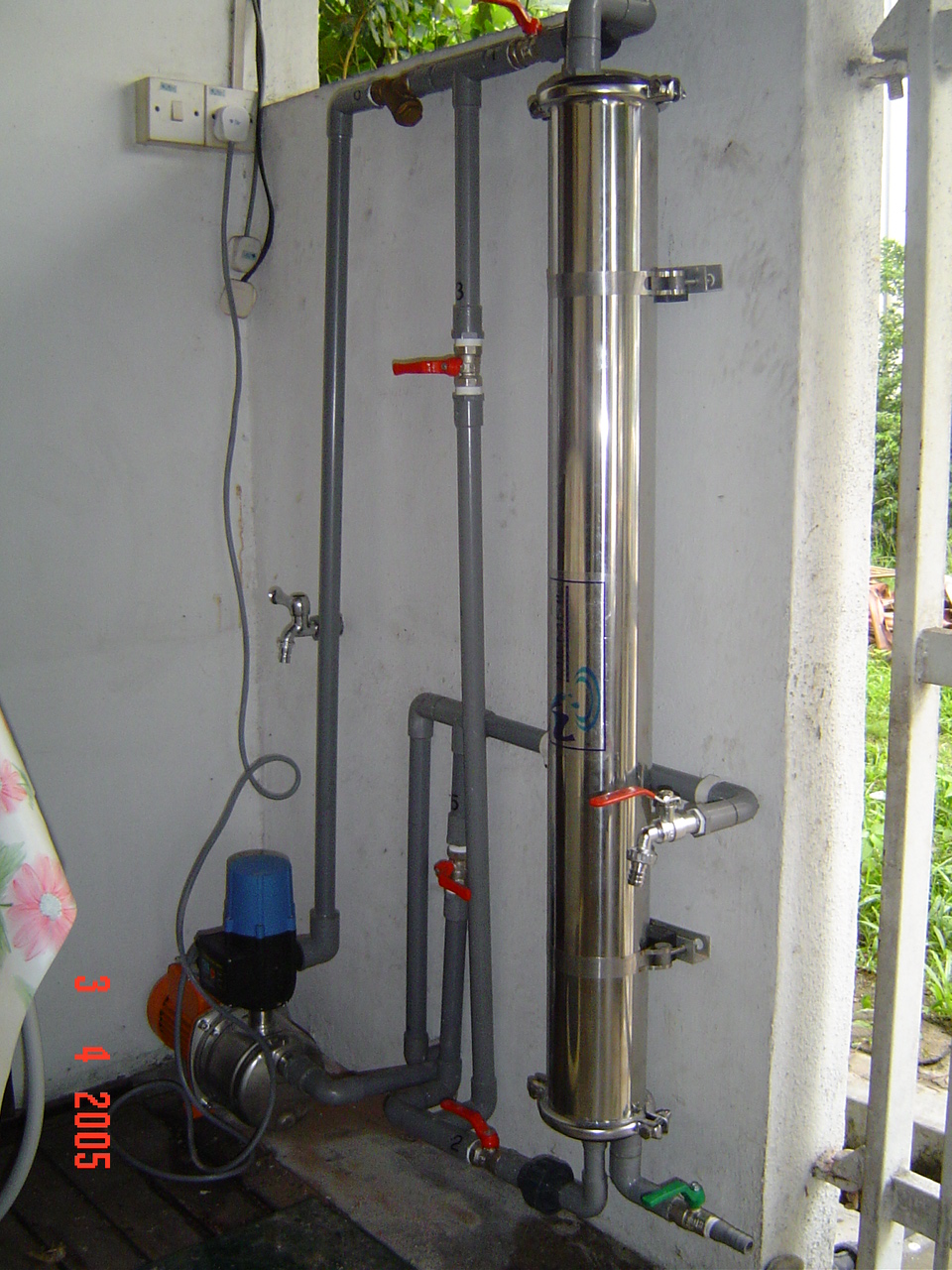

DRS-440S have better
filtrate quality
compared to
conventional
pretreatment
Specification
:
Flow rate :
1500 L/h
Dimension (Dia x
L) mm : 102 x
1050
Operating
pressure : 1.5 -
3.5 bar
Operation
temperature : 40
Celcius
pH range :
3.0 - 12.0
Filtrate
turbidity : 0.1
NTU
MWCO : 80 000
Sheel material :
Stainless Steel
Removal of
suspended solid :
99.99%
Removal of
bacteria and virus :
99.99%
Removal of TOC :
0 - 50%
Max inlet
turbidity (NTU) :
20 NTU

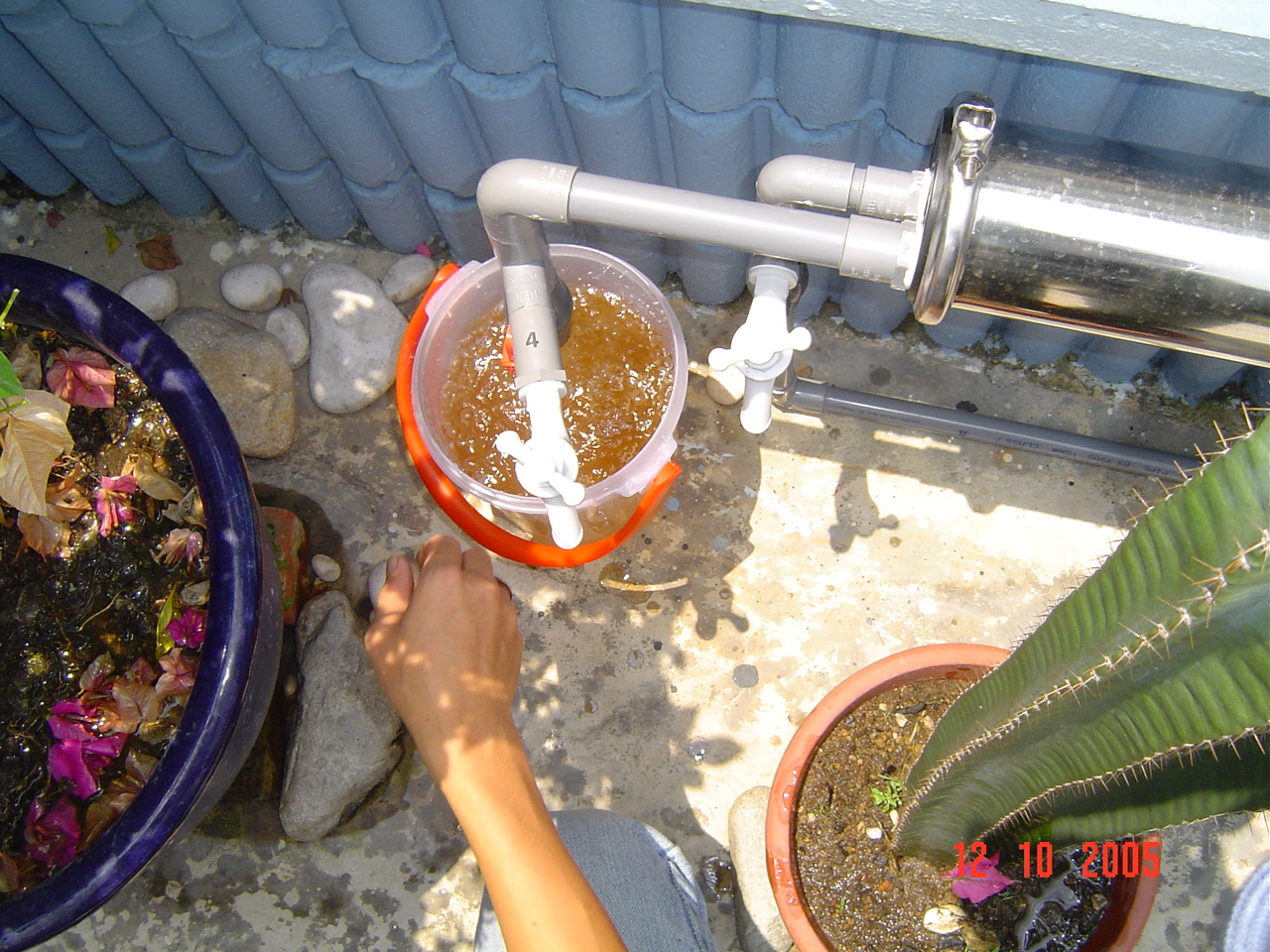

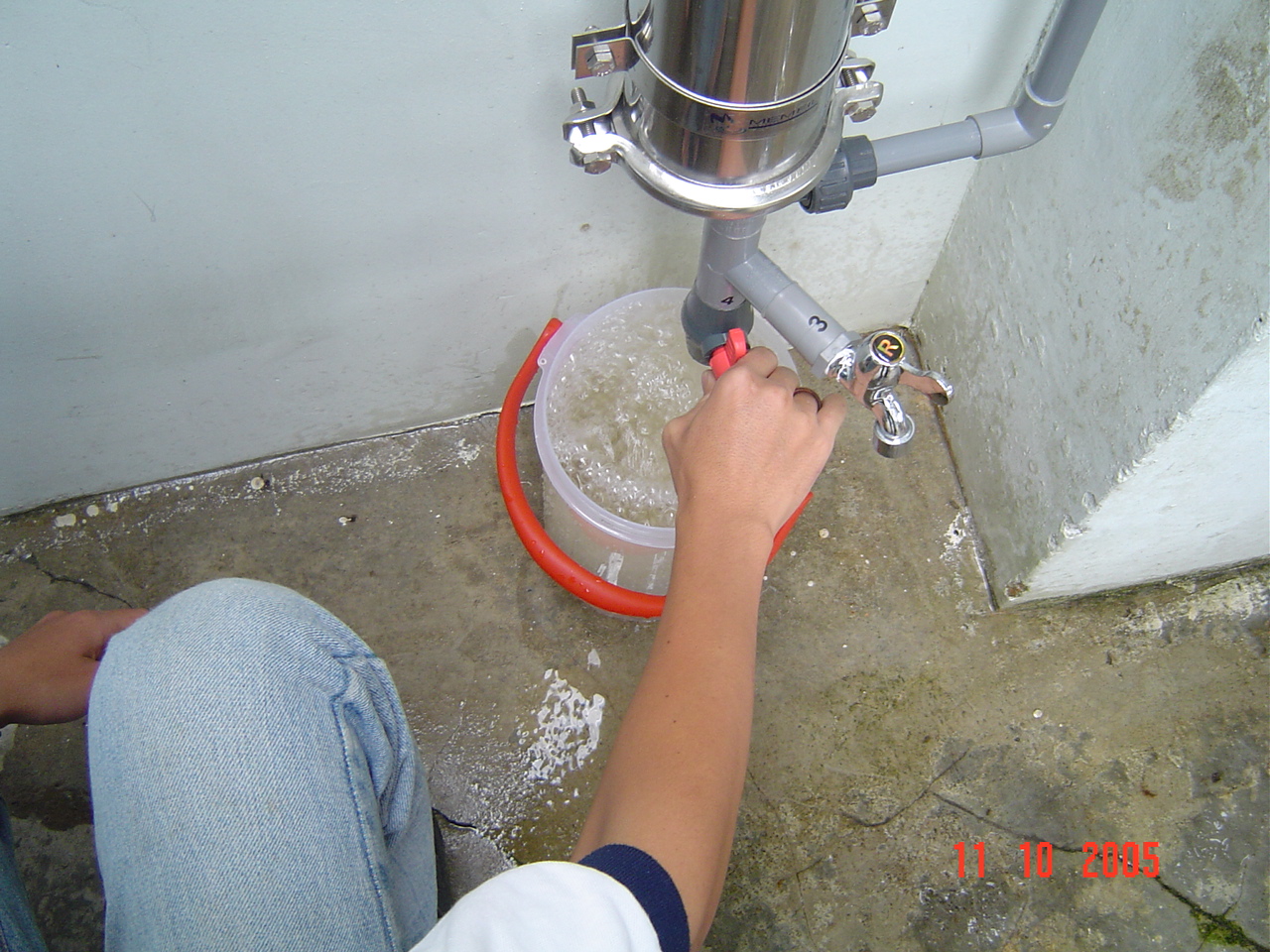

Flushing time :
30 sec.
Membrane pore
size : 0.01
micron
